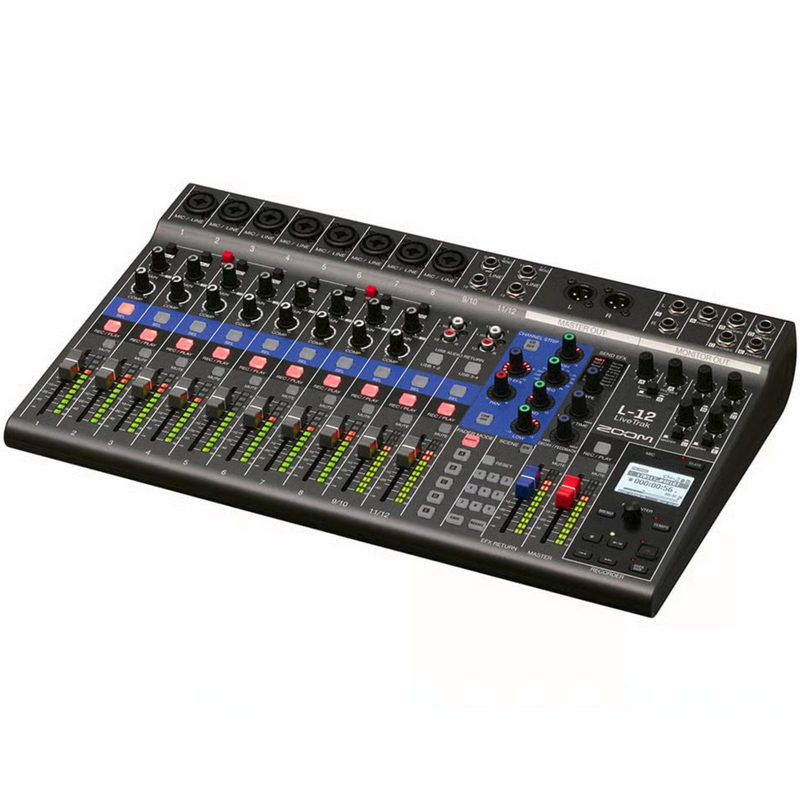

With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.
LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing. LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.
Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup. LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported (Apple Lightning to USB Camera Adapter required).
12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
14-track simultaneous recording, 12-track playback
14-in/4-out USB audio interface connectivity
5 powered headphone outputs, each with a customizable and saveable mix
Add backing/click tracks from your computer to your live mix and recording
RCA and TRS line inputs
48V phantom power (channels 1-4 and 5-8)
Hi-Z connectivity (channels 1 and 2)
26 dB pad (channels 3-8)
Built-in compression control (Channels 1-8)
Digital level meters -48 dB to -0 dB
Master mute button
Master and Monitor Outputs A-E
Scene saving function, up to 9 scenes saved at a time
16 built-in delay and reverb effects with adjustable parameters
Built-in slate mic
Class-compliant mode (for iOS compatibility)
SD card input
Automatic recording starting/stopping capability
Import/export projects with USB 2.0 host port
Latency adjustment for A-to-D conversion
Compatible functions for ZOOM FS01 footswitch
For more information, please visit the manufacturer's website.
