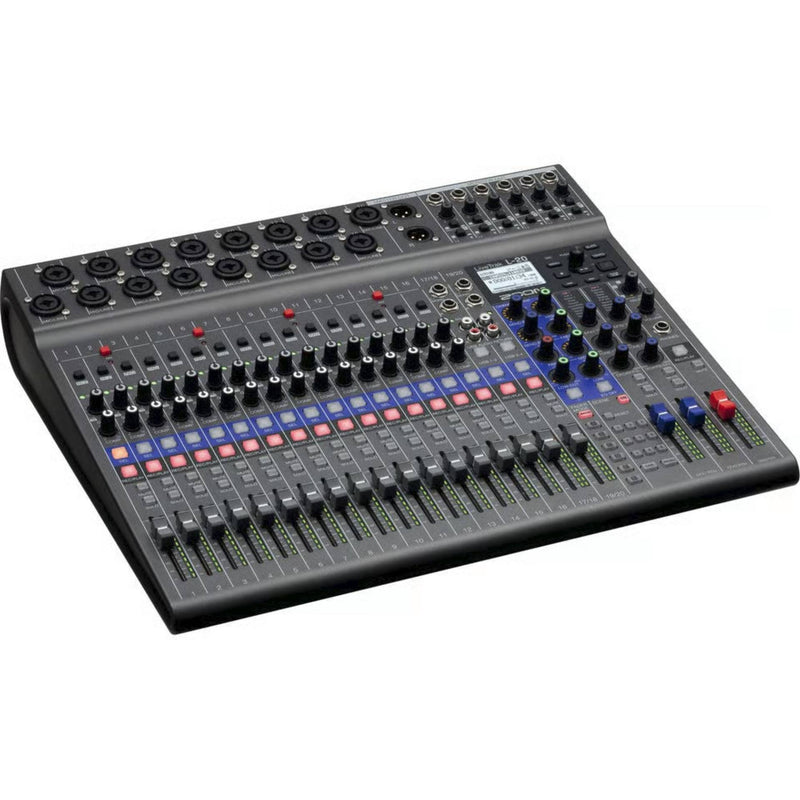

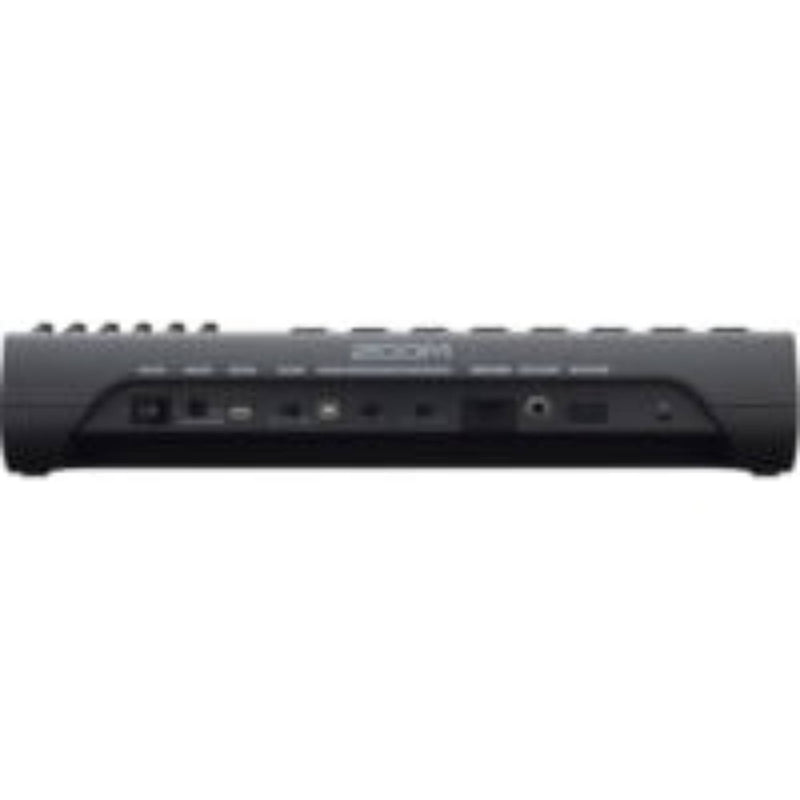

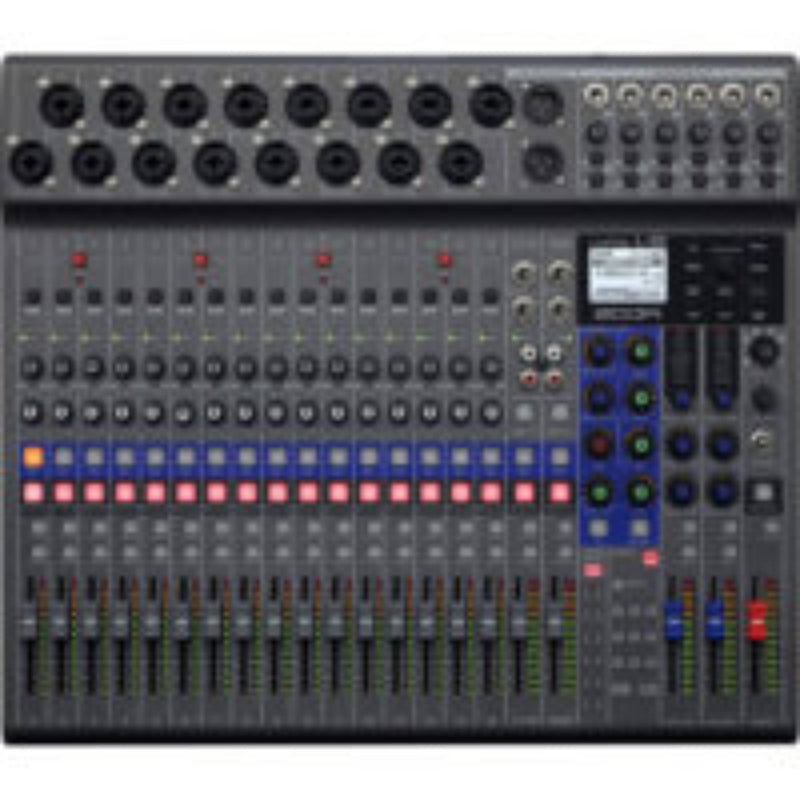

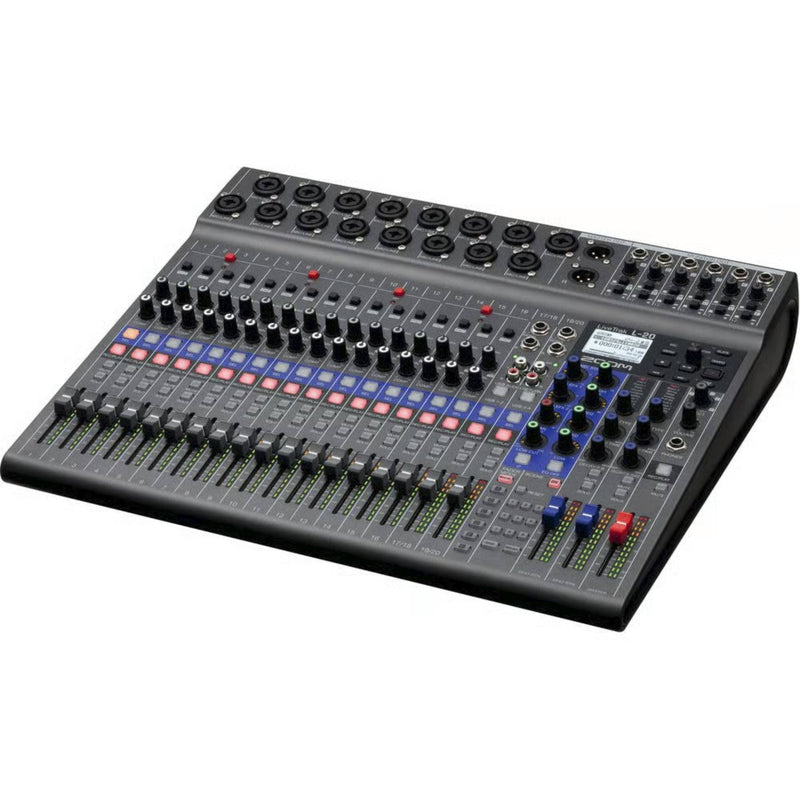

The LiveTrak™ L-20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it’s built for bigger, bolder arrangements. The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.
Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz. At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.
With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors. The LiveTrak L-20 features a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians’ satisfaction.
Although the LiveTrak L-20 is designed to work as a stand-alone recording and mixing console, it can also be used as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which enables connection with iOS devices, is supported as well (Apple Lightning to USB Camera Adapter required).
The LiveTrak L-20 offers wireless control (Zoom Bluetooth adapter (ex. BTA-1) required. Communication at up to 10 meters is possible in an unobstructed indoor space with BTA-1 units) via a free iOS mobile app "L-20 Control" featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.
20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
22-track simultaneous recording, 20-track playback
22-in/4-out USB audio interface connectivity
Records up to 24bit/96kHz audio to SD card
48V phantom power
Hi-Z connectivity (channels 1-2)
26dB pad (channels 3-16)
Built-in compression control (Channels 1-16)
Solo buttons for individual channels
Variable frequency low-cut control
Main outputs plus 6 customisable monitor outputs
Dedicated headphone output for sound engineer
Scene saving function, up to 9 scenes saved at a time
20 built-in chorus, delay and reverb effects with adjustable parameters
Two effect busses
Built-in slate mic
Class-compliant mode (for iOS compatibility)
Compatible with Remote Mixer app for iPad
Automatic recording starting/stopping capability
Import/export projects with USB 2.0 host port
Compatible functions for ZOOM FS01 footswitch
Automatic power-save function
For more information, please visit the manufacturer's website.
